Modelo AdaBoost

# Modelo AdaBoost
## A sabedoria ponderada das multidões
### ⚔ <br/> Mateus Maia <br/> em conjunto com Anderson Ara
### 2019-06-27

---

#Aprendizado Estatístico Supervisionado
<br/>
#.large[$$g:\mathcal{X}\rightarrow\mathcal{Y}$$]

<br/>
#.large[$$\hat{g}(\mathbf{X})=\mathbf{Y}$$]
---

# Aprendizado Estatístico Supervisionado
.center[!["Os retângulos vermelhos indicam items faltantes"](grocery_store_new.png)]

---
# Aprendizado Estatístico Supervisionado

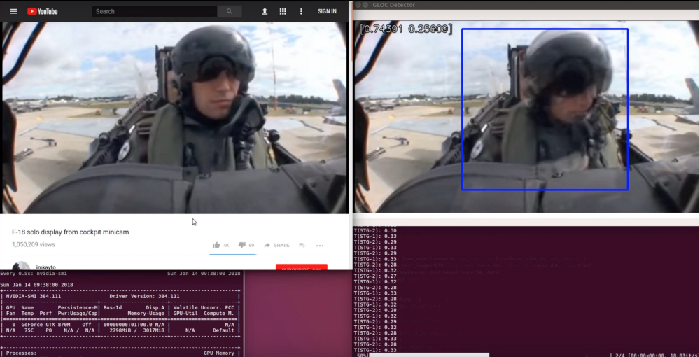

.center[!["Uma demonstraçãoo da força G de Alex induziu o detector de perda de consciência."](pilot_flier.png)]

---
class: inverse, center, middle

# Modelos de Ensemble

---

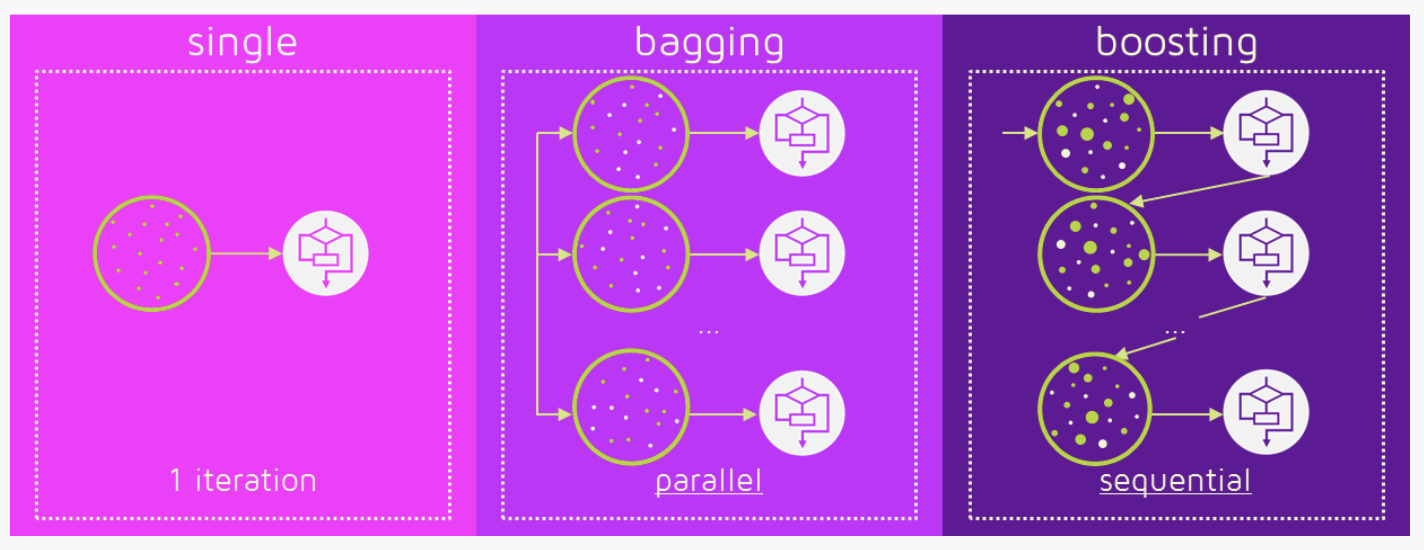

# Modelos de Ensemble

---
# Modelos de Ensemble

---

# Modelos de Boosting

-**Boosting Adaptativo**
<br/>
<br/>
--
-Boosting Gradiente
<br/>
<br/>
--
-Boosting Gradiente Estocástico
<br/>
<br/>
--
-eXtreme Gradient Boosting
<br/>
<br/>
--
-LightBoosting

---

# Boosting Adaptativo
## (AdaBoosting)

---

# AdaBoosting

Dado `$$\mathbf{y}\in\{1,1\}$$`
<br/>
<br/>

`$$G(\mathbf{x})=sign \left(\sum_{m=1}^{M} \alpha_{m}g_{m}(\mathbf{x}) \right)$$`

--
<br/>
<br/>
##.center[A sabedoria ponderada das multidões]

---

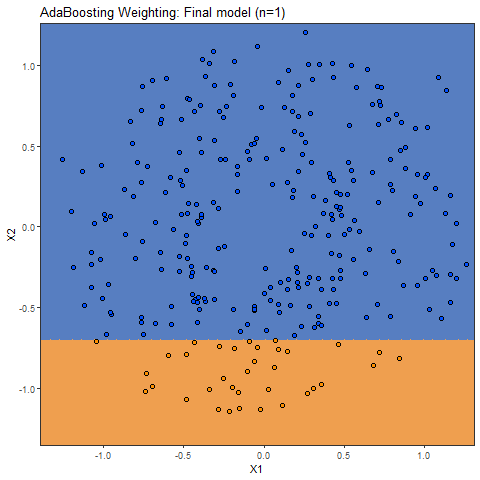

# AdaBoosting

---
background-image: url(D:/my_computer/Est_ML_2019/presentation_meet_data_bahia/macaco_fazendo_conta.gif)
background-size: cover
class: center, middle, inverse

# Hora das contas...

---

#AdaBoosting

---
#AdaBoosting

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
</tbody>
</table>

---

# AdaBoost

```r
library(rpart)
library(rpart.plot)
g1<-rpart(Heart_Disease~Chest_Pain+Blocked_Arteries+Patient_Weight,
             data=medical_care,
             control = rpart.control(maxdepth=1,minsplit = 2))

rpart.plot(g1)
```

---

#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
  </tr>
</tbody>
</table>
--
`$$\alpha_{1}=\frac{1}{2}log\left(\frac{1-\epsilon_{1}}{\epsilon_{1}} \right)$$`
--
`$$\alpha_{1}=\frac{1}{2}log\left(\frac{1-\epsilon_{1}}{\epsilon_{1}} \right)=\frac{1}{2}log\left(\frac{1-0.125}{0.125} \right)=0.973$$`
---
#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
   <th style="text-align:center;"> New_Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
</tbody>
</table>
--

`$$New\;weights_{correct}=weights_{correct}\times e^{-\alpha_{1}}$$`
--
`$$New\;weights_{correct}=0.125\times e^{-0.973}=0.047$$`
---
#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
   <th style="text-align:center;"> New_Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
</tbody>
</table>
`$$New\;weights_{correct}=weights_{correct}\times e^{-\alpha_{1}}$$`

`$$New\;weights_{correct}=0.125\times e^{-0.973}=0.047$$`
---
#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
   <th style="text-align:center;"> New_Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
</tbody>
</table>
--
`$$New\;weights_{wrong}=weights_{wrong}\times e^{\alpha_{1}}$$`
--
`$$New\;weights_{wrong}=0.125\times e^{0.973}=0.331$$`
---
#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
   <th style="text-align:center;"> New_Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
   <td style="text-align:center;"> 0.331 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
</tbody>
</table>

`$$New\;weights_{wrong}=weights_{wrong}\times e^{\alpha_{1}}$$`

`$$New\;weights_{wrong}=0.125\times e^{0.973}=0.331$$`

---
#AdaBoosting

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
   <th style="text-align:center;"> New_Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
   <td style="text-align:center;"> 0.331 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
</tbody>
</table>

---

#AdaBoosting

---
#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
  </tr>
  <tr>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
  </tr>
  <tr>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
  </tr>
  <tr>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
  </tr>
  <tr>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
  </tr>
</tbody>
</table>
---

# AdaBoosting

```r
g2<-rpart(Heart_Disease~Chest_Pain+Blocked_Arteries+Patient_Weight,
             data=reweighted_data,
             control = rpart.control(maxdepth=1,minsplit = 2))

rpart.plot(g2)
```

<img src="xaringan_presentation_files/figure-html/unnamed-chunk-13-1.png" style="display: block; margin: auto;" />
---

---

#AdaBoosting

<br/>
<br/>
`$$G(\mathbf{x})=sign \left(\sum_{m=1}^{M} \alpha_{m}g_{m}(\mathbf{x}) \right)$$`
--
<br/>
<br/>
`$$G(\mathbf{x_{i}})=sign \left(\alpha_{1}g_{1}(\mathbf{x}_{i})+\alpha_{2}g_{2}(\mathbf{x}_{i})+\dots+ \alpha_{M}g_{M}(\mathbf{x_{i}}) \right)$$`
--
<br/>
<br/>
`$$G(\mathbf{x_{i}})=sign \left(1\times(\alpha_{1,Sim}+\dots+\alpha_{k,Sim})+(-1)\times \right(\alpha_{2,Não}+\dots+\alpha_{p,Não}))$$`

---

# Dados Simulados

---
# Dados Simulados

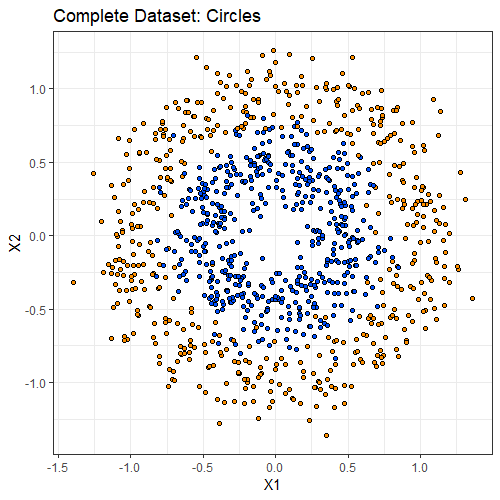

.center[![](circles_png_square.png)]

---
# Dados Simulados
.center[![](ada_gif_presentation4.gif)]

---
# Dados Simulados

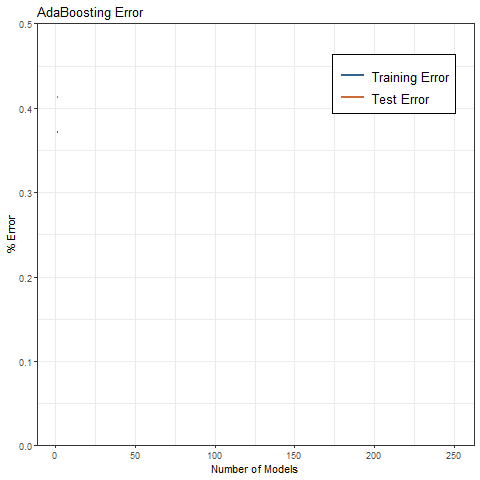

.center[![](error_gif_presentation3.gif)]

---
background-image: url(D:/my_computer/Est_ML_2019/presentation_meet_data_bahia/frog_write.gif)
background-size: cover
class: center, bottom, inverse

# Mineração de Texto
## (e AdaBoosting)

---

# Text Mining e algumas aplicações

- __Classificação de Textos__

- Clusterização de Textos

- Análise de Sentimentos

- *Concept Extraction*
--

- Summarização de Documentos

---
##Classificação de Textos

.pull.left[![](buss3.png)]
.pull.right[![](sports3.png)]
---

# Bag of Words

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> X1 </th>
   <th style="text-align:center;"> timewarn </th>
   <th style="text-align:center;"> profit </th>
   <th style="text-align:center;"> warner </th>
   <th style="text-align:center;"> quarter </th>
   <th style="text-align:center;"> fourth </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> b001.txt </td>
   <td style="text-align:center;"> 0.3804104 </td>
   <td style="text-align:center;"> 0.3130291 </td>
   <td style="text-align:center;"> 0.1902052 </td>
   <td style="text-align:center;"> 0.1511458 </td>
   <td style="text-align:center;"> 0.1283632 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> b002.txt </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> b003.txt </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> b004.txt </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0283345 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0273626 </td>
   <td style="text-align:center;"> 0.0000000 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> b005.txt </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> b006.txt </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.1400322 </td>
   <td style="text-align:center;"> 0.0000000 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> b007.txt </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> b008.txt </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> b009.txt </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> b010.txt </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
   <td style="text-align:center;"> 0.0000000 </td>
  </tr>
</tbody>
</table>

---

# Pré-processamento de texto

---

# Stemming
<br/>
<br/>
.center[![](stemming_v2.png)]

---

# Stop Words
.center[![](stopwords_cloud.jpg)]

---

# Ponderação dos Termos

Para um __termo i__ no __documento j__

---

# Modelagem
## AdaBoosting

---
# Base de dados e parâmetros do modelo

-400 observações com 5231 covariáveis

-200 notícias de __Esportes__ e 200 notícias de __Negócios__

-10-Folds com 10 repetições

---

# Quantos Stumps (tocos) utilizar?

---

#Tuning
<br/>
<br/>
.center[![](big_tuning.png)]
---

---

# Obrigado!

mateusmaia11@gmail.com

<br/>
<br/>
Quem quiser explorar um pouco mais o AdaBoosting

mateusmaia.shinyapps.io/adaboosting/
