Statisical Learning and Ensemble Methods

# Statisical Learning and Ensemble Methods
### ⚔ <br/> Mateus Maia<br/> <br/> <br/> a joint work with Anderson Ara<br/><br/> Master’s Student of Statistics at Federal University of Bahia <br/><br/> Supported by CAPES/CNPq
### 2019-05-03

---

#Outline

####Ensemble Methods
--

####Bagging Methods

- RandomForest
--

####Boosting

- AdaBoosting

- Gradient Boosting

---
class: inverse, center, middle

# Ensemble Models

---

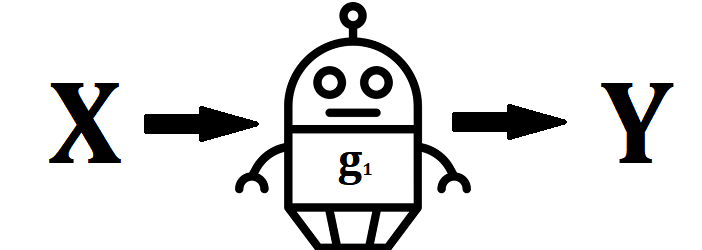

# Statistical Learning Models

---

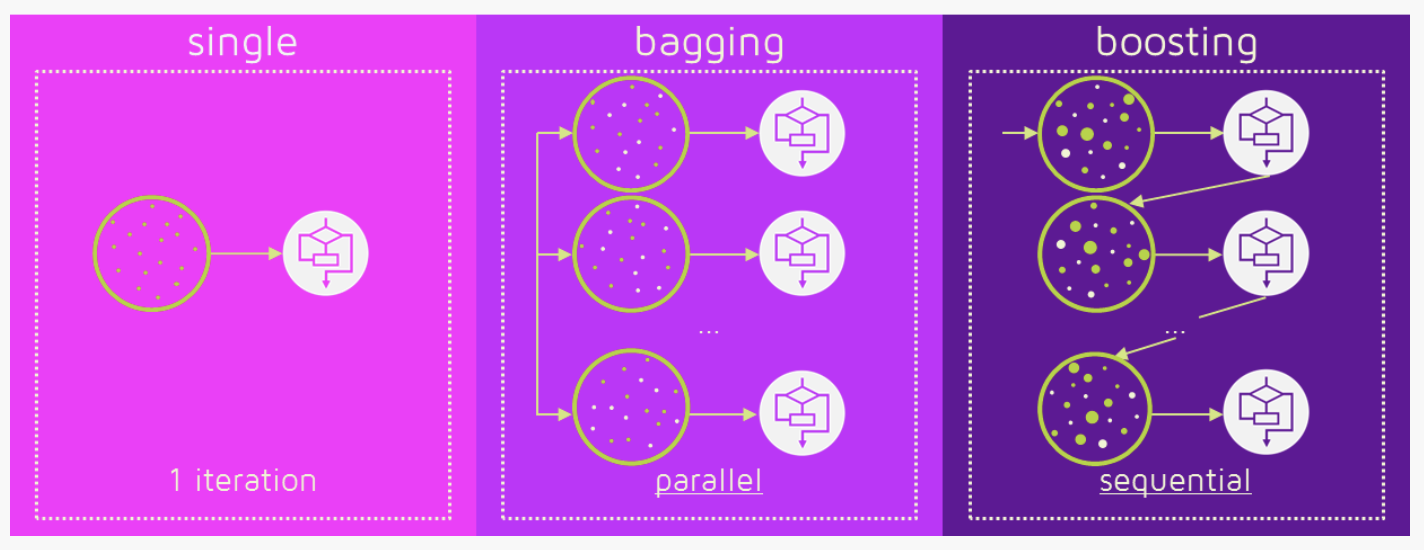

# Ensemble Models

---

# Ensemble Models

---
# Ensemble Models

---

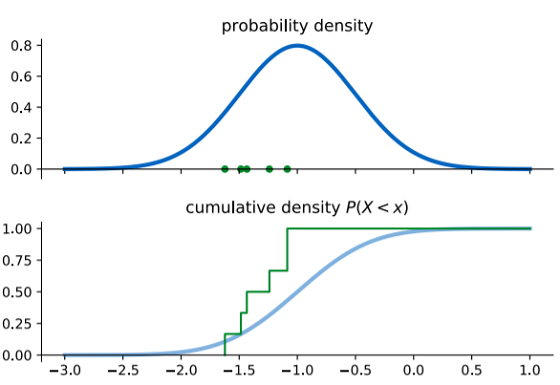

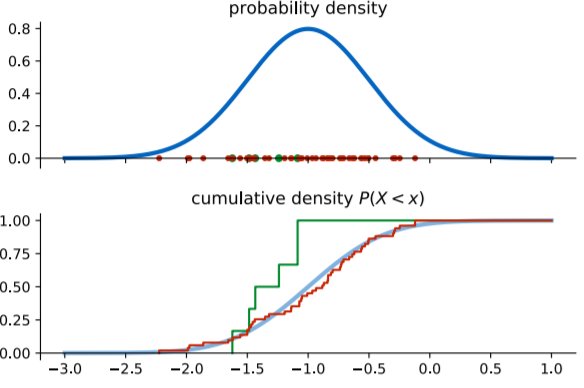

# Bagging

---

##.center[*Booststraping Aggregation*]

### Regression Problems
 `$$\hat{G}_{bag}(\mathbf{x})=\frac{1}{B}\sum_{b=1}^{B}\hat{g}^{*b}(\mathbf{x})$$`

### Classification Problems
 `$$\hat{G}_{bag}(\mathbf{x})=sign\left(\sum_{b=1}^{B}\hat{g}^{*b}(\mathbf{x})\right)$$`

---
# Bagging: Pseudo code

1. Sample, with replacement, a *k* dataset of the same size as the whole data set ( k bootstraping samples).

1. Train a models to each boostrap sample.

--
1. The ensemble prediction is given by:

**the mean** from all predictions from models (for regression tasks)<br/>

   **the majority vote** among all models (for classification tasks)

---
background-image: url(forest.jpg)
background-size: cover
class: inverse, center, middle

# Random Forest

---
# Random Forest

-Bagging with decision trees

-Subsample the data *and* the features for each model in the ensemble

-Reduces variance, few hyperparameters, easy to paralellise.

-No reduction of bias

---

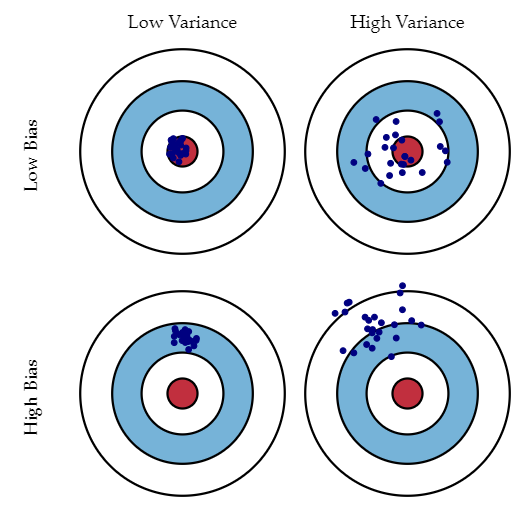

# Bias, variance and Ensemble

---
background-image: url(code_time.gif)
background-size: cover
class: inverse, center, middle

# Code Time!

---

# Boosting

---
# Boosting Models

-**Adaptative Boosting (Freund and Schapire,1999)**
<br/>
<br/>
--
- Gradient Boosting(Friedman, 2001)
<br/>
<br/>
--
-Stochastic Gradient Boosting (Friedman, 2002)
<br/>
<br/>
--
-eXtreme Gradient Boosting (Chen, et. al, 2016)
<br/>
<br/>
--
-LightBoosting (Ke, et. al, 2017)

---

# Boosting Adaptativo
## (AdaBoosting)

---

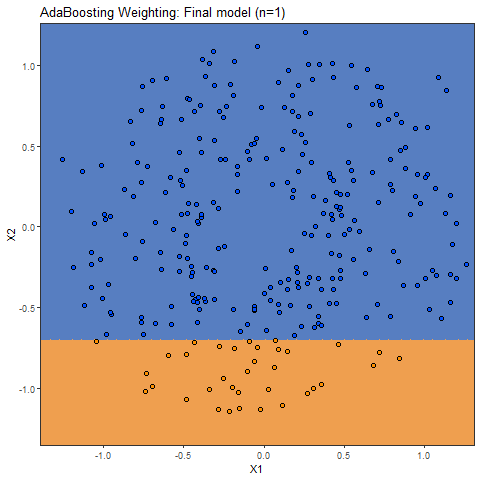

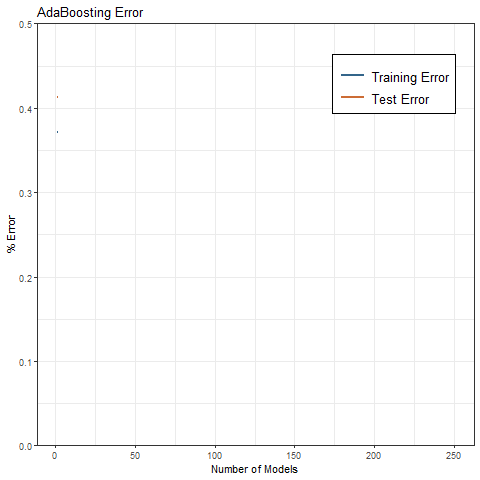

# AdaBoosting

Dado `$$\mathbf{y}\in\{1,-1\}$$`
<br/>
<br/>

`$$G(\mathbf{x})=sign \left(\sum_{m=1}^{M} \alpha_{m}g_{m}(\mathbf{x}) \right)$$`

--
<br/>
<br/>
##.center[The weighted wisdom of a crowd of experts]

---

# AdaBoosting

---
background-image: url(macaco_fazendo_conta.gif)
background-size: cover
class: center, middle, inverse

# Algebra Time!

---

#AdaBoosting

---
#AdaBoosting

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;"> 0.125 </td>
  </tr>
</tbody>
</table>

---

# AdaBoost

```r
library(rpart)
library(rpart.plot)
g1<-rpart(Heart_Disease~Chest_Pain+Blocked_Arteries+Patient_Weight,
             data=medical_care,
             control = rpart.control(maxdepth=1,minsplit = 2))

rpart.plot(g1)
```

---

#Voting Power

`$$\alpha_{1}=\frac{1}{2}log\left(\frac{1-\epsilon_{1}}{\epsilon_{1}} \right)$$`

<img src="xaringan_presentation_files/figure-html/unnamed-chunk-5-1.png" style="display: block; margin: auto;" />
---
#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
   <th style="text-align:center;"> New_Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
</tbody>
</table>
--

`$$New\;weights_{correct}=weights_{correct}\times e^{-\alpha_{1}}$$`
--
`$$New\;weights_{correct}=0.125\times e^{-0.973}=0.047$$`
---
#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
   <th style="text-align:center;"> New_Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
</tbody>
</table>
`$$New\;weights_{correct}=weights_{correct}\times e^{-\alpha_{1}}$$`

`$$New\;weights_{correct}=0.125\times e^{-0.973}=0.047$$`
---

#Weighting Correct

<img src="xaringan_presentation_files/figure-html/unnamed-chunk-8-1.png" style="display: block; margin: auto;" />
---

#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
   <th style="text-align:center;"> New_Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
   <td style="text-align:center;">  </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
</tbody>
</table>
--
`$$New\;weights_{wrong}=weights_{wrong}\times e^{\alpha_{1}}$$`
--
`$$New\;weights_{wrong}=0.125\times e^{0.973}=0.331$$`
---
#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
   <th style="text-align:center;"> New_Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
   <td style="text-align:center;"> 0.331 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
</tbody>
</table>

`$$New\;weights_{wrong}=weights_{wrong}\times e^{\alpha_{1}}$$`

`$$New\;weights_{wrong}=0.125\times e^{0.973}=0.331$$`

---
#Weighting Wrong

<img src="xaringan_presentation_files/figure-html/unnamed-chunk-11-1.png" style="display: block; margin: auto;" />
---
#AdaBoosting

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
   <th style="text-align:center;"> g1 </th>
   <th style="text-align:center;"> New_Weights </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 205 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 210 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">Yes</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: red !important;">No</span> </td>
   <td style="text-align:center;"> 0.331 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 156 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> <span style="     color: green !important;">No</span> </td>
   <td style="text-align:center;"> 0.047 </td>
  </tr>
</tbody>
</table>

---

#AdaBoosting

---
#AdaBoosting
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Chest_Pain </th>
   <th style="text-align:center;"> Blocked_Arteries </th>
   <th style="text-align:center;"> Patient_Weight </th>
   <th style="text-align:center;"> Heart_Disease </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 172 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
  </tr>
  <tr>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
  </tr>
  <tr>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
  </tr>
  <tr>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 168 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
  </tr>
  <tr>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
   <td style="text-align:center;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> 167 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;font-weight: bold;color: white !important;background-color: #3454D1 !important;"> Yes </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 125 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> No </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 180 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> Yes </td>
  </tr>
</tbody>
</table>
---

# AdaBoosting

```r
g2<-rpart(Heart_Disease~Chest_Pain+Blocked_Arteries+Patient_Weight,
             data=reweighted_data,
             control = rpart.control(maxdepth=1,minsplit = 2))

rpart.plot(g2)
```

<img src="xaringan_presentation_files/figure-html/unnamed-chunk-16-1.png" style="display: block; margin: auto;" />
---

---

#AdaBoosting

<br/>
<br/>
`$$G(\mathbf{x})=sign \left(\sum_{m=1}^{M} \alpha_{m}g_{m}(\mathbf{x}) \right)$$`
--
<br/>
<br/>
`$$G(\mathbf{x_{i}})=sign \left(\alpha_{1}g_{1}(\mathbf{x}_{i})+\alpha_{2}g_{2}(\mathbf{x}_{i})+\dots+ \alpha_{M}g_{M}(\mathbf{x_{i}}) \right)$$`
--
<br/>
<br/>
`$$G(\mathbf{x_{i}})=sign \left(1\times(\alpha_{1,Sim}+\dots+\alpha_{k,Sim})+(-1)\times \right(\alpha_{2,Não}+\dots+\alpha_{p,Não}))$$`

---

# Dados Simulados

---
# Dados Simulados

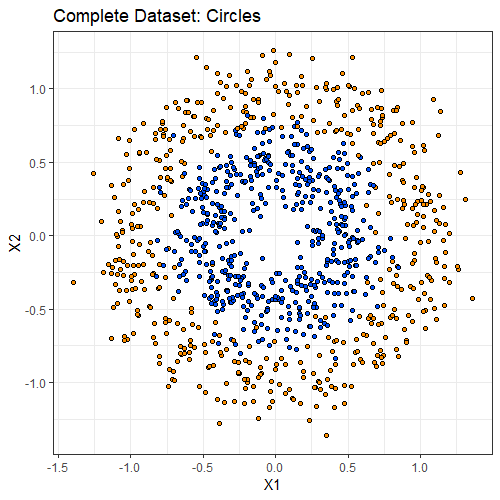

.center[![](circles_png_square.png)]

---
# Dados Simulados
.center[![](ada_gif_presentation4.gif)]

---
# Dados Simulados
.center[![](error_gif_presentation3.gif)]

---
class: center, middle, inverse

# Gradient Boosting

---

# Gradient Boosting

Find the the function `$\hat{g}$` which minimizes the loss function

# `$$L(\mathbf{\hat{G},y})=\sum_{n=1}^{N} L(y_{i},\hat{G}(x_{i}))$$`

---

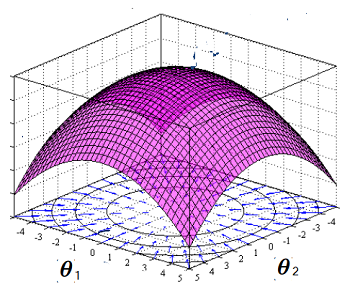

## Gradient Descent

One of the simplest optimization algorithms is called gradient descent or steepest descent. This can be written as follows, given a function of `$f(\mathbf{\theta})$`, the value of `$\theta$` that minimizes `$f$` can be given by
--
<br/>
<br/>

`$$\boldsymbol{\theta_{k+1}}=\boldsymbol{\theta_{k}}-\eta_{k}\mathbf{g_{k}}=\boldsymbol{\theta_{k}}-\eta_{k}\nabla_{\theta}f(\boldsymbol{\theta_{k}})$$`
--

---

# Gradient Boosting

Adapting the gradient descent solution to the loss function, we have that the `$\mathbf{\hat{G}}$` which minimizes the loss function can be given by

# `$$\mathbf{\hat{G}}_{m+1}=\mathbf{\hat{G}}_{m}-\eta_{m}\mathbf{g_{m}}$$`

where

## `$$g_{im}=\left[ \frac{\partial L(y_{i},G(x_{i}))}{\partial G(x_{i})} \right]\Big|_{G(x_{i})=G_{m}(x_{i})}$$`
---
#Gradient Boosting vs. AdaBoost

# Regression Gradient Boosting

---
# Gradient Boosting Regression

---
## First Round

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Height </th>
   <th style="text-align:center;"> Favorite_Colour </th>
   <th style="text-align:center;"> Gender </th>
   <th style="text-align:center;"> Weight </th>
   <th style="text-align:center;"> G_0 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 88 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.17 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 76 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.17 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 56 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.17 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.8 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 73 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.17 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 77 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.17 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 57 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.17 </td>
  </tr>
</tbody>
</table>

---

## First Round

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Height </th>
   <th style="text-align:center;"> Favorite_Colour </th>
   <th style="text-align:center;"> Gender </th>
   <th style="text-align:center;"> Weight </th>
   <th style="text-align:center;"> G_0 </th>
   <th style="text-align:center;"> Pseudo_Residuals </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 88 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 16.83 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 76 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 4.83 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 56 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -15.17 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.8 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 73 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 1.83 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 77 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 5.83 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 57 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -14.17 </td>
  </tr>
</tbody>
</table>

---
## Tree Pseudo Residuals Model

```r
library(rpart)
library(rpart.plot)
g0<-rpart(Pseudo_Residuals~Height+Favorite_Colour+Gender,
             data=grad_weight,
             control = rpart.control(maxdepth=2,minsplit = 2))

rpart.plot(g0)
```

---
## First Round

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Height </th>
   <th style="text-align:center;"> Favorite_Colour </th>
   <th style="text-align:center;"> Gender </th>
   <th style="text-align:center;"> Weight </th>
   <th style="text-align:center;"> G_0 </th>
   <th style="text-align:center;"> Pseudo_Residuals </th>
   <th style="text-align:center;"> g_0 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 88 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> 16.83 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 16.83 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 76 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> 4.83 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 4.83 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 56 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> -15.17 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -14.67 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.8 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 73 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> 1.83 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 3.83 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 77 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> 5.83 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 3.83 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 57 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> -14.17 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -14.67 </td>
  </tr>
</tbody>
</table>

---
## First Round

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Height </th>
   <th style="text-align:center;"> Favorite_Colour </th>
   <th style="text-align:center;"> Gender </th>
   <th style="text-align:center;"> Weight </th>
   <th style="text-align:center;"> G_0 </th>
   <th style="text-align:center;"> Pseudo_Residuals </th>
   <th style="text-align:center;"> g_0 </th>
   <th style="text-align:center;"> G_1 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 88 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> 16.83 </td>
   <td style="text-align:center;"> 16.83 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 72.853 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 76 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> 4.83 </td>
   <td style="text-align:center;"> 4.83 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.653 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 56 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> -15.17 </td>
   <td style="text-align:center;"> -14.67 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 69.703 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.8 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 73 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> 1.83 </td>
   <td style="text-align:center;"> 3.83 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.553 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 77 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> 5.83 </td>
   <td style="text-align:center;"> 3.83 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.553 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 57 </td>
   <td style="text-align:center;"> 71.17 </td>
   <td style="text-align:center;"> -14.17 </td>
   <td style="text-align:center;"> -14.67 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 69.703 </td>
  </tr>
</tbody>
</table>

---
## Second Round
<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Height </th>
   <th style="text-align:center;"> Favorite_Colour </th>
   <th style="text-align:center;"> Gender </th>
   <th style="text-align:center;"> Weight </th>
   <th style="text-align:center;"> G_1 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 88 </td>
   <td style="text-align:center;"> 72.853 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 76 </td>
   <td style="text-align:center;"> 71.653 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 56 </td>
   <td style="text-align:center;"> 69.703 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.8 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 73 </td>
   <td style="text-align:center;"> 71.553 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 77 </td>
   <td style="text-align:center;"> 71.553 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 57 </td>
   <td style="text-align:center;"> 69.703 </td>
  </tr>
</tbody>
</table>
---
## Second Round

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Height </th>
   <th style="text-align:center;"> Favorite_Colour </th>
   <th style="text-align:center;"> Gender </th>
   <th style="text-align:center;"> Weight </th>
   <th style="text-align:center;"> G_1 </th>
   <th style="text-align:center;"> Pseudo_Residuals </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 88 </td>
   <td style="text-align:center;"> 72.853 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 15.147 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 76 </td>
   <td style="text-align:center;"> 71.653 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 4.347 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 56 </td>
   <td style="text-align:center;"> 69.703 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -13.703 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.8 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 73 </td>
   <td style="text-align:center;"> 71.553 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 1.447 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 77 </td>
   <td style="text-align:center;"> 71.553 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 5.447 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 57 </td>
   <td style="text-align:center;"> 69.703 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -12.703 </td>
  </tr>
</tbody>
</table>
---

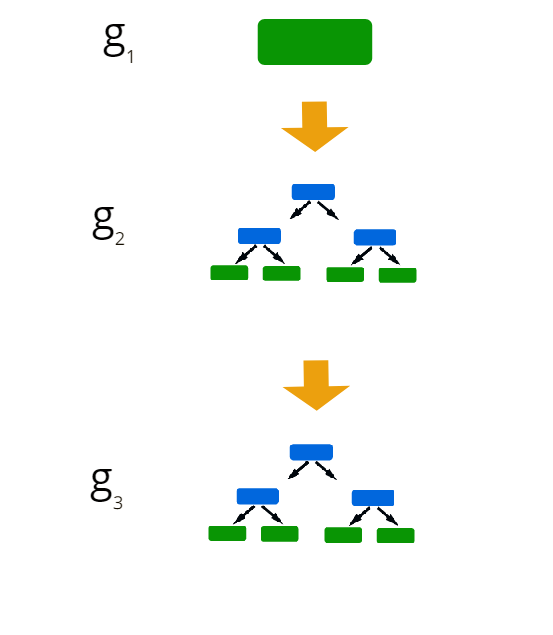

## Tree Pseudo Residuals Model

```r
library(rpart)
library(rpart.plot)
g1<-rpart(Pseudo_Residuals~Height+Favorite_Colour+Gender,
             data=new_grad_weight,
             control = rpart.control(maxdepth=2,minsplit = 2))

rpart.plot(g1)
```

---
## Second Round

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Height </th>
   <th style="text-align:center;"> Favorite_Colour </th>
   <th style="text-align:center;"> Gender </th>
   <th style="text-align:center;"> Weight </th>
   <th style="text-align:center;"> G_1 </th>
   <th style="text-align:center;"> Pseudo_Residuals </th>
   <th style="text-align:center;"> g_1 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 88 </td>
   <td style="text-align:center;"> 72.853 </td>
   <td style="text-align:center;"> 15.147 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 15.147 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 76 </td>
   <td style="text-align:center;"> 71.653 </td>
   <td style="text-align:center;"> 4.347 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 4.347 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 56 </td>
   <td style="text-align:center;"> 69.703 </td>
   <td style="text-align:center;"> -13.703 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -13.203 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.8 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 73 </td>
   <td style="text-align:center;"> 71.553 </td>
   <td style="text-align:center;"> 1.447 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 3.447 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 77 </td>
   <td style="text-align:center;"> 71.553 </td>
   <td style="text-align:center;"> 5.447 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 3.447 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 57 </td>
   <td style="text-align:center;"> 69.703 </td>
   <td style="text-align:center;"> -12.703 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -13.203 </td>
  </tr>
</tbody>
</table>
---

## Second Round

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Height </th>
   <th style="text-align:center;"> Favorite_Colour </th>
   <th style="text-align:center;"> Gender </th>
   <th style="text-align:center;"> Weight </th>
   <th style="text-align:center;"> G_1 </th>
   <th style="text-align:center;"> Pseudo_Residuals </th>
   <th style="text-align:center;"> g_1 </th>
   <th style="text-align:center;"> G_2 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 88 </td>
   <td style="text-align:center;"> 72.853 </td>
   <td style="text-align:center;"> 15.147 </td>
   <td style="text-align:center;"> 15.147 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 74.37 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.6 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 76 </td>
   <td style="text-align:center;"> 71.653 </td>
   <td style="text-align:center;"> 4.347 </td>
   <td style="text-align:center;"> 4.347 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 72.09 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 56 </td>
   <td style="text-align:center;"> 69.703 </td>
   <td style="text-align:center;"> -13.703 </td>
   <td style="text-align:center;"> -13.203 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 68.38 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.8 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 73 </td>
   <td style="text-align:center;"> 71.553 </td>
   <td style="text-align:center;"> 1.447 </td>
   <td style="text-align:center;"> 3.447 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.90 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.5 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Male </td>
   <td style="text-align:center;"> 77 </td>
   <td style="text-align:center;"> 71.553 </td>
   <td style="text-align:center;"> 5.447 </td>
   <td style="text-align:center;"> 3.447 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 71.90 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Female </td>
   <td style="text-align:center;"> 57 </td>
   <td style="text-align:center;"> 69.703 </td>
   <td style="text-align:center;"> -12.703 </td>
   <td style="text-align:center;"> -13.203 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 68.38 </td>
  </tr>
</tbody>
</table>
---
#Pseudo Code
__Input__: Data `$\{(x_{i},y_{i})\}_{i=1}^{n}$`, and a differentiable __Loss Function__ `$L(y_{i},G(x))$`

--
__Step 1__: Initialize model with a constant values: `$F_{0}(x)=\underset{\gamma}{argmin} \sum_{i}^NL(y_{i},\gamma)$`

--
__Step 2__: for `$m=1$` to `$M$`

`$\hspace{1cm}$`__(a)__ Compute `$r_{im}=-\left[ \frac{\partial L(y_{i},G(x_{i}))}{\partial G(x_{i})} \right]\Big|_{G(x_{i})=G_{m}(x_{i})}$` for `$i=1,..,n$`

  `$\hspace{1cm}$`__(b)__ Fit a regression tree to the `$r_{im}$` values and create terminal regions `$R_{jm}$`,for `$j=1,...,m$`

  `$\hspace{1cm}$`__(c)__ For `$j=1,\dots,J_{m}$` comp. `$\gamma_{i,j}=\sum_{x_{i} \in R_{ij}}\underset{\gamma}{argmin} L(y_{i},G_{m-1}(x_{i})+\gamma)$`

  `$\hspace{1cm}$`__(d)__ Update `$G_{m}(\mathbf{x})=G_{m-1}(\mathbf{x}) +\eta \sum_{j=1}^{J_m} \gamma_{jm} I(x \in R_{jm})$`

--

__Step 3__: Output `$G_{M}(x)$`
---

# Classification Gradient Boosting

---
## Gradient Boosting Classification

Calculate the log of odds

`$$log(odds)=log\left(\frac{4}{2}\right)=0.7$$`

Probability of __Loving Trolls 2__= `$\frac{e^{log(odds)}}{1+e^{log(odds)}}=0.7$`

---
## Gradient Boosting Classifiation

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Likes_Popcorn </th>
   <th style="text-align:center;"> Age </th>
   <th style="text-align:center;"> Favorite_Color </th>
   <th style="text-align:center;"> Loves_Trolls_2 </th>
   <th style="text-align:center;"> G_0 </th>
   <th style="text-align:center;"> Residuals </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 12 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 0.3 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 87 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 0.3 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 44 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -0.7 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 19 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -0.7 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 32 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 0.3 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 14 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 0.3 </td>
  </tr>
</tbody>
</table>

---
## Modeling Tree Residuals

```r
library(rpart)
library(rpart.plot)
g0<-rpart(Residuals~Likes_Popcorn+Age+Favorite_Color,
             data=grad_trolls,
             control = rpart.control(maxdepth=2,minsplit = 2))

rpart.plot(g0)
```

<img src="xaringan_presentation_files/figure-html/unnamed-chunk-32-1.png" style="display: block; margin: auto;" />
--
`$$\frac{\sum Residuals_{i}}{\sum Previous Probability_{i}\times(1-Previous Probability_{i})}$$`

---
## Gradient Boosting Classification

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Likes_Popcorn </th>
   <th style="text-align:center;"> Age </th>
   <th style="text-align:center;"> Favorite_Color </th>
   <th style="text-align:center;"> Loves_Trolls_2 </th>
   <th style="text-align:center;"> G_0 </th>
   <th style="text-align:center;"> Residuals </th>
   <th style="text-align:center;"> g_0 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 12 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> 0.3 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 1.4 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 87 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> 0.3 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -1.0 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 44 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> -0.7 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -1.0 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 19 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> -0.7 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -3.3 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 32 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> 0.3 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 1.4 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 14 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> 0.3 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 1.4 </td>
  </tr>
</tbody>
</table>
--

The new predict loggods wil be given by

`$$G_{1}=G_{0}+\eta*g_{0}$$`

---
## Gradient Boosting Clasification

Considering `$\eta$` = 0.8

<table class="table table-striped" style="width: auto !important; margin-left: auto; margin-right: auto;">
 <thead>
  <tr>
   <th style="text-align:center;"> Likes_Popcorn </th>
   <th style="text-align:center;"> Age </th>
   <th style="text-align:center;"> Favorite_Color </th>
   <th style="text-align:center;"> Loves_Trolls_2 </th>
   <th style="text-align:center;"> G_0 </th>
   <th style="text-align:center;"> Residuals </th>
   <th style="text-align:center;"> g_0 </th>
   <th style="text-align:center;"> G_1 </th>
  </tr>
 </thead>
<tbody>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 12 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> 0.3 </td>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 1.82 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 87 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> 0.3 </td>
   <td style="text-align:center;"> -1.0 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -0.10 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 44 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> -0.7 </td>
   <td style="text-align:center;"> -1.0 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -0.10 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 19 </td>
   <td style="text-align:center;"> Red </td>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> -0.7 </td>
   <td style="text-align:center;"> -3.3 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> -1.94 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 32 </td>
   <td style="text-align:center;"> Green </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> 0.3 </td>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 1.82 </td>
  </tr>
  <tr>
   <td style="text-align:center;"> No </td>
   <td style="text-align:center;"> 14 </td>
   <td style="text-align:center;"> Blue </td>
   <td style="text-align:center;"> Yes </td>
   <td style="text-align:center;"> 0.7 </td>
   <td style="text-align:center;"> 0.3 </td>
   <td style="text-align:center;"> 1.4 </td>
   <td style="text-align:center;font-weight: bold;color: #243B4A !important;"> 1.82 </td>
  </tr>
</tbody>
</table>
--

The new probabilities will be given by loggods wil be given by

`$Prob_{new1}=\frac{e^{log(odds)}}{1+e^{log(odds)}}=\frac{e^{G_1}}{1+e^{G_{1}}}$`

---
## Gradient Boosting Clasification

#Pseudo Code
__Input__: Data `$\{(x_{i},y_{i})\}_{i=1}^{n}$`, and a differentiable __Loss Function__ `$L(y_{i},G(x))$`

--
__Step 1__: Initialize model with a constant values: `$F_{0}(x)=\underset{\gamma}{argmin} \sum_{i}^NL(y_{i},\gamma)$`

--
__Step 2__: for `$m=1$` to `$M$`

__Step 3__: Output `$G_{M}(x)$`
---
background-image: url(code_time.gif)
background-size: cover
class: inverse, center, middle

# Code Time!

---
